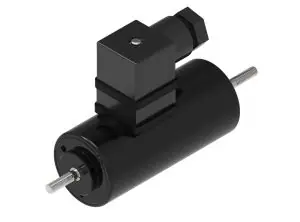

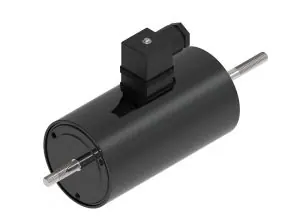

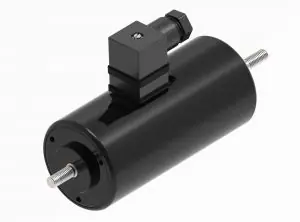

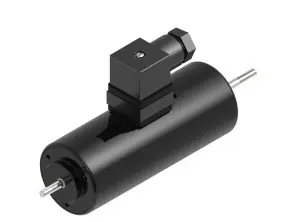

ECR serie

(Push / Pull; IP40)

Industrial linear solenoids with a double winding. When voltage is applied to coil 1 or 2, the movement towards the corresponding side is made. The power of each coil can be customised on request.

Standard: Connector DIN43650A Magnetic Force (N)Response time (ms)
Duty cycle ED%Power 20°C (W)Stroke startEnd of strokeAttraction TRepulsion T
100131010,4110110
403017,9169595
25452219,68484
157528277979
521046437777

Standard: Connector DIN43650A

 Magnetic Force (N)Response time (ms)
Duty cycle ED%Power 20°C (W)Stroke startEnd of strokeAttraction TRepulsion T
1002018,744203203
40453084160160
257041104137137
1512056133127127
532092193116116

Standard: Connector DIN43650A

 Magnetic Force (N)Response time (ms)
Duty cycle ED%Power 20°C (W)Stroke startEnd of strokeAttraction TRepulsion T
1003046152291291
407573199228228
2511091253198198
15185118303196196
5545177385181181
Standard: Connector DIN43650A Magnetic Force (N)Response time (ms)
Duty cycle ED%Power 20°C (W)Stroke startEnd of strokeAttraction TRepulsion T
100342868371371
409842112320320
2516656148270270
1519571182250250
5830146269212212

Standard: Connector DIN43650A

 Magnetic Force (N)Response time (ms)
Duty cycle ED%Power 20°C (W)Stroke startEnd of strokeAttraction TRepulsion T
1005585265651651
40125126379488488
25190163501417417
15300205578332332
5900341837307307

Related products

This bolt is locked without voltage, the locking is made by an incorporated spring. With an electrical signal the bolt turns to unlocked. The key has two positions, in the locked position the key cannot be removed. To remove it, it is necesary to
unlock the bolt.

This locking bolt is double coil bistable solenoid, where the stroke movement from initial (unlocked) to final position (locked) is made by electromagnetic forces when coil 1 is feeded. The return to initial positions takes place by an inverse polarizing pulse (when coil 2 is feeded) combined with an incorporated spring.
